Our tooling concept is based on making a copy of a model. The model can be an old component or one made by rapid prototyping.

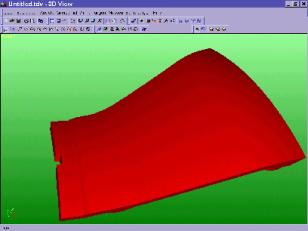

In the case of rapid prototyping a CAD data-file is used to create a stereo-lithography model
In the case of rapid prototyping a CAD data-file is used to create a stereo-lithography model

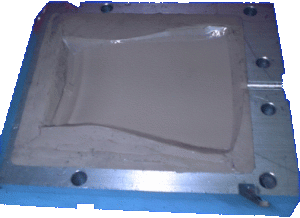

This model is used to make the die. This die can be filled either with wax or with reactive resin materials.
This model is used to make the die. This die can be filled either with wax or with reactive resin materials.

Polymeric components can be made as an almost perfect copy from the model whereas for the investment casting process the shrinkage of the wax and of the metal has to be taken into consideration.
